Process | Condenser

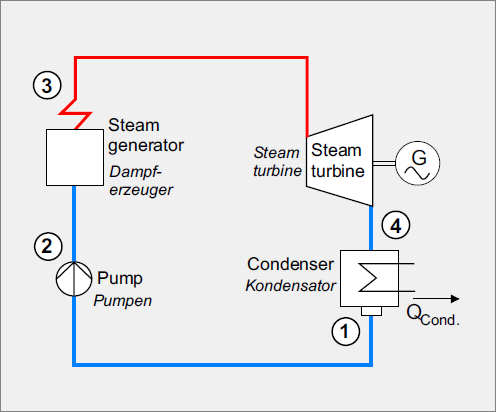

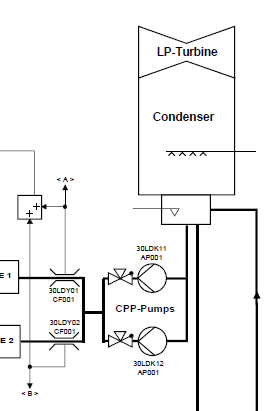

The box-type surface condenser is located behind the LP turbine and forms an integral part of it. The steam dome, shell and hotwell are steel fabrications.
The condenser is fixed supported on the foundation beneath. The steam space is of rectangular cross-section to achieve optimum utilisation of the enclosed steam volume.
The extraction of non condensable gases is performed by 2x100% water-ring vacuum pumps.
